Hot Rolled Steel Square Bars

Explore the key specifications of Hot Rolled Steel Square Bars for accurate, project-ready material selection.

6: 0.283 · 19 · 2.834
7: 0.385 · 20 · 3.14

Request a Quote

Overview

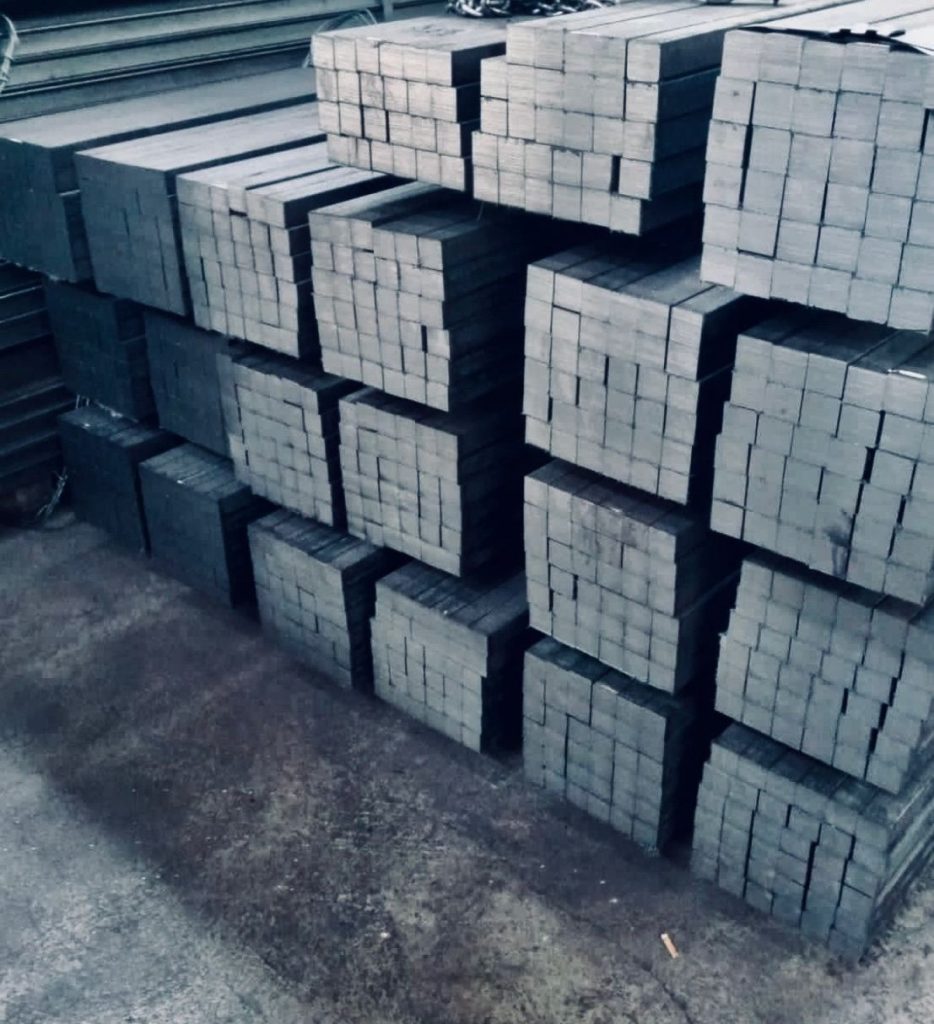

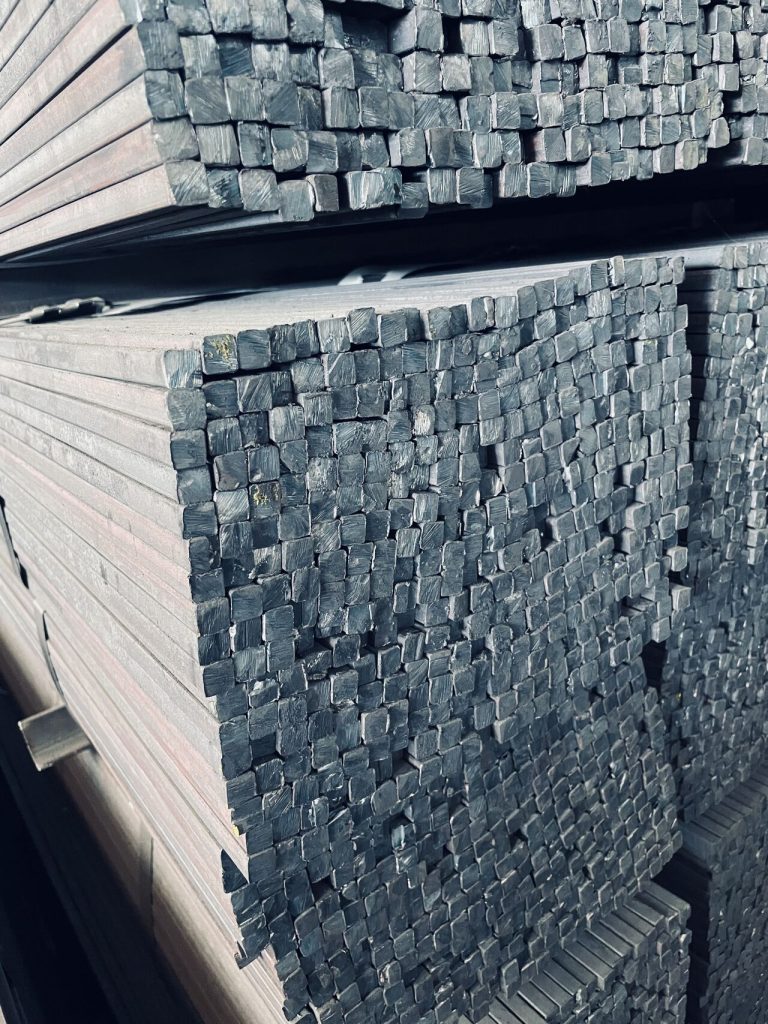

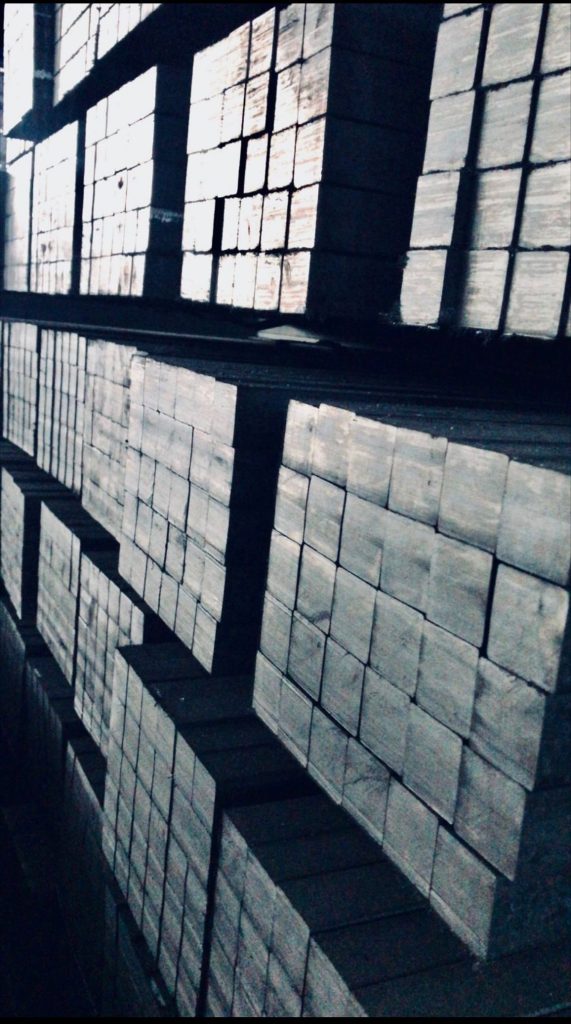

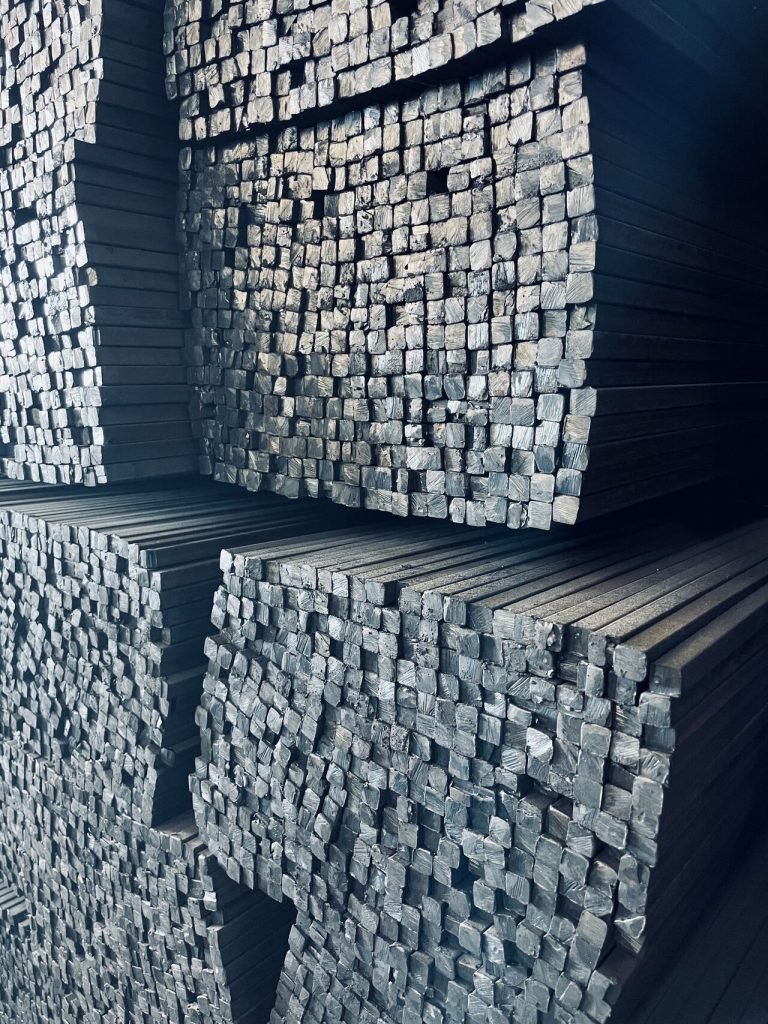

Hot rolled steel square bars are solid metal profiles shaped at high temperatures above the recrystallization point. They feature high workability, a slightly textured surface, and great strength, making them ideal for general fabrication, construction, and structural support.

Areas Of Usage

Construction: Building frames, support beams, and structural reinforcements.

Manufacturing: Machine parts, shafts, axles, pins, and agricultural implements.

Ornamental: Gates, fences, railings, and decorative ironwork.

Specifications

Square Bars Size - Weight Table
Metric Measurement				Imperial Measurement
Size (mm)	Unit Weight (kg/m)	Size (mm)	Unit Weight (kg/m)	Size (inches)	Unit Weight (kg/m)	Unit Weight (lbs/ft)
6	0.283	19	2.834	1/4	0.317	0.213014
7	0.385	20	3.14	5/16	0.495	0.332625
7.5	0.442	22	3.8	3/8	0.713	0.479114
8	0.502	24	4.52	7/16	0.969	0.651138
8.5	0.567	25	4.91	1/2	1.266	0.850713
9	0.636	26	5.31	5/8	1.98	1.330499
9.5	0.708	28	6.15	3/4	2.849	1.91444
10	0.785	30	7.07	7/8	3.876	2.604552
10.5	0.865	32	8.04	1	5.065	3.403523
11	0.95	35	9.62	1¼	7.913	5.317291
11.5	1.038	38	8.903	1½	11.395	7.657086
12	1.13	40	12.6	1¾	15.51	10.422239
12.5	1.227	45	15.9	2	20.258	13.612747
13	1.33	50	19.6	2½	31.653	21.269834
13.5	1.431	55	23.746	3	45.581	30.629018
14	1.54	60	22.195
14.5	1.65	70	30.239
15	1.77	75	44.16
15.5	1.886	80	39.457
16	2.01	85	55.716
17	2.269	90	63.585
18	2.54	100	78.5
