Hot Rolled Steel Equal Angles
Explore the key specifications of Hot Rolled Steel Equal Angles for accurate, project-ready material selection.
- 19x19x2: 0.576 · 45x45x3 · 1.844
- 19x19x2,2: 0.629 · 45x45x4 · 2.74
Overview

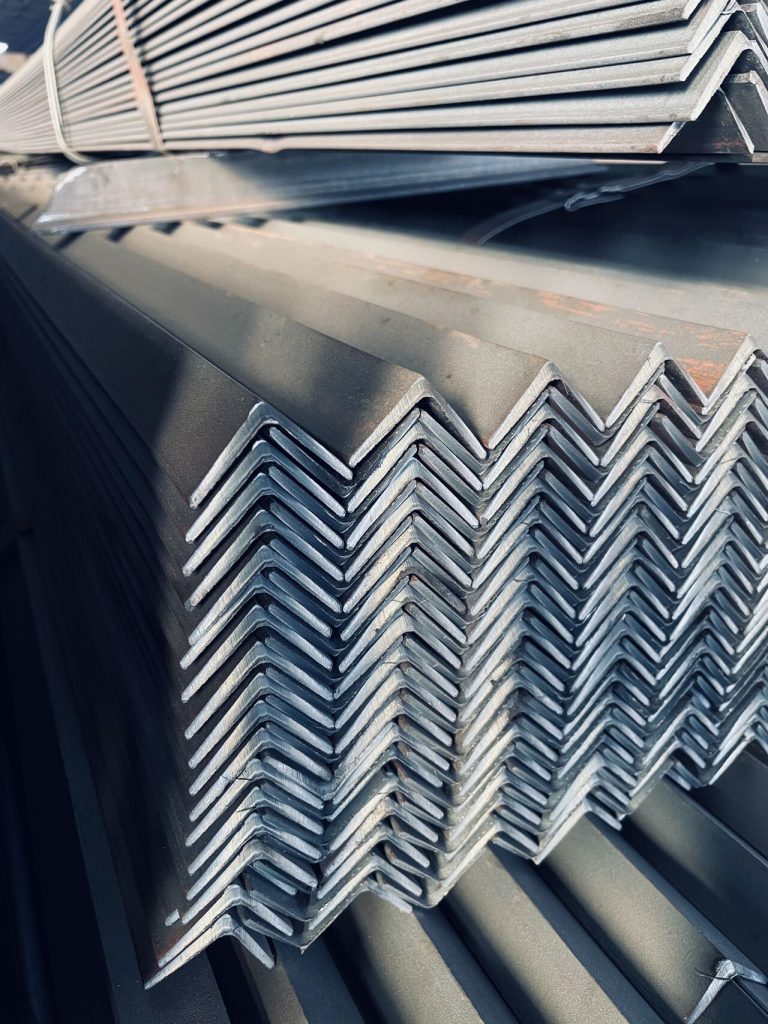

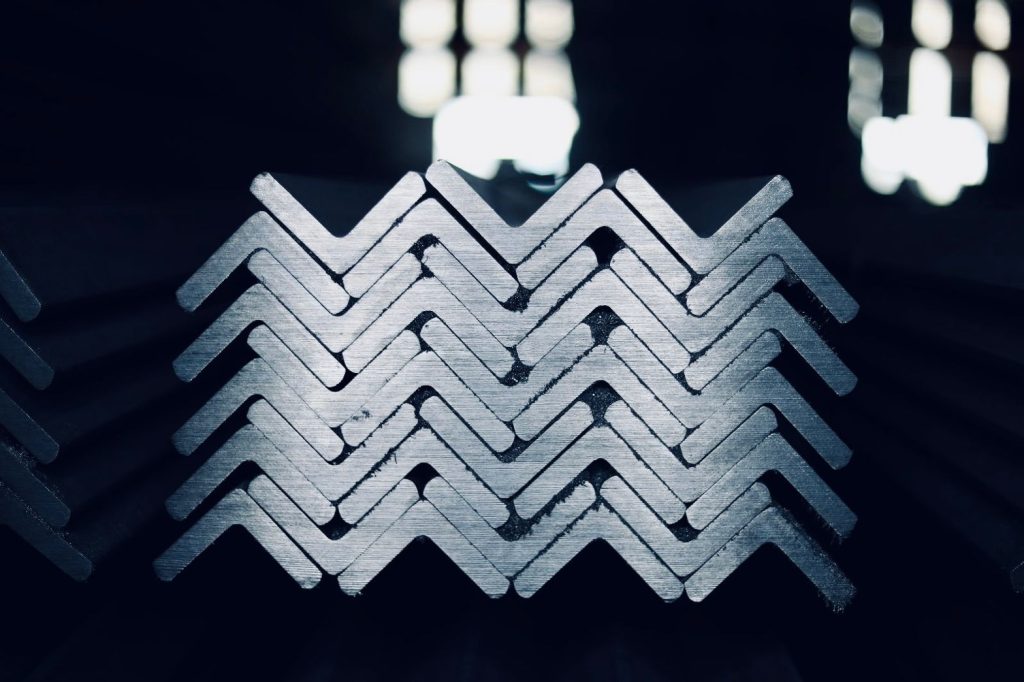

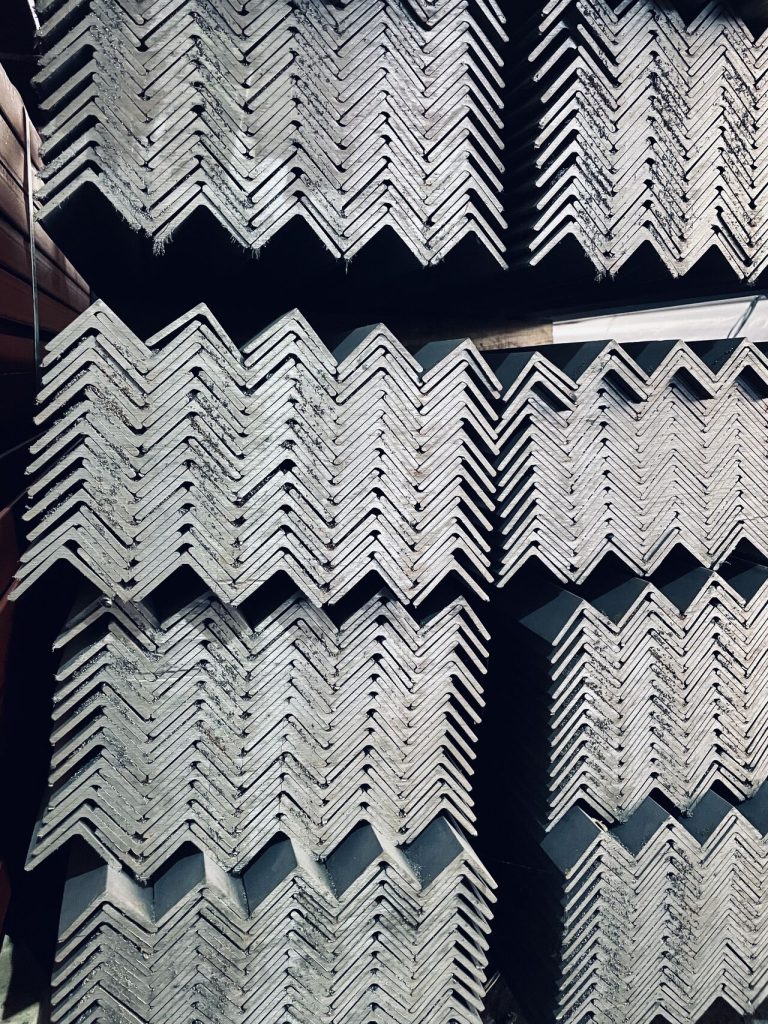

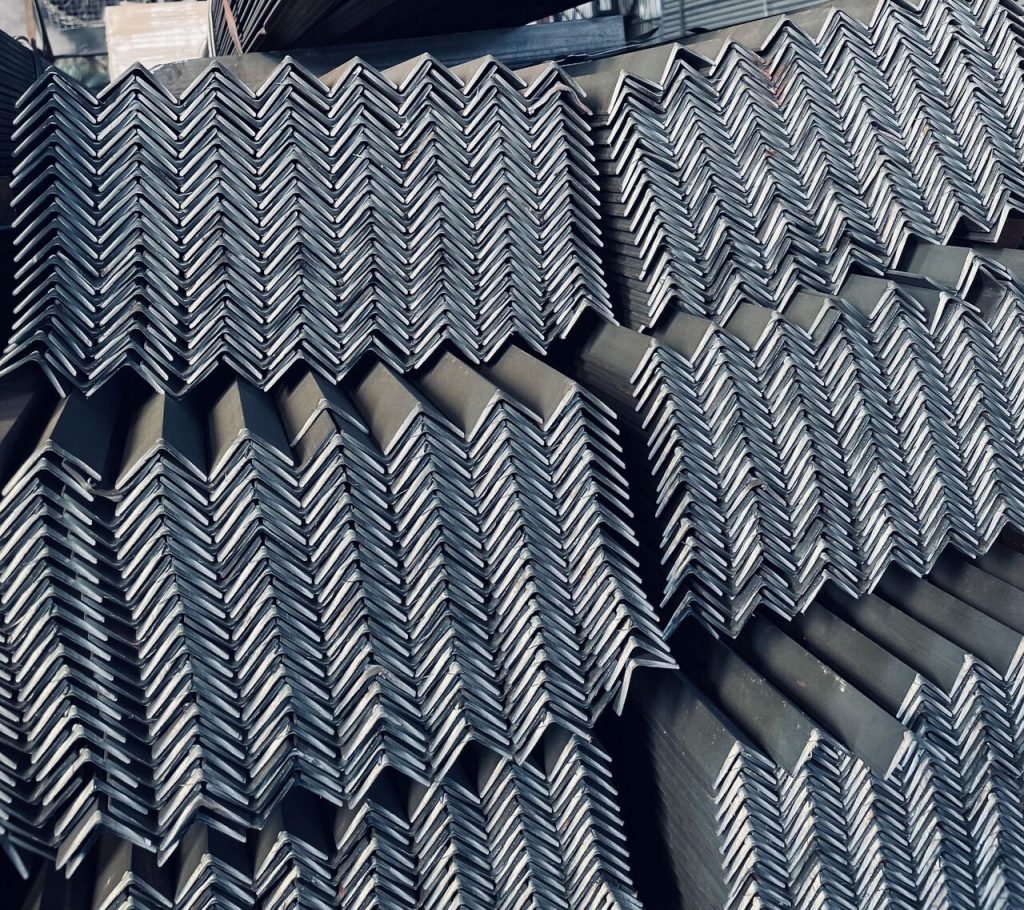

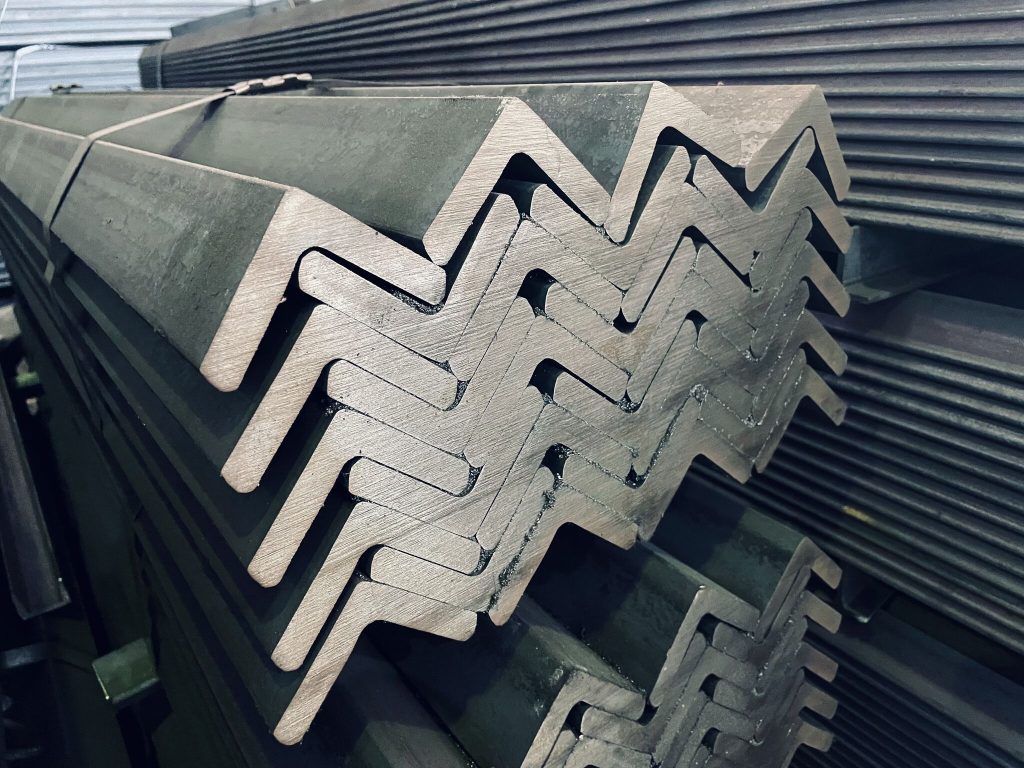

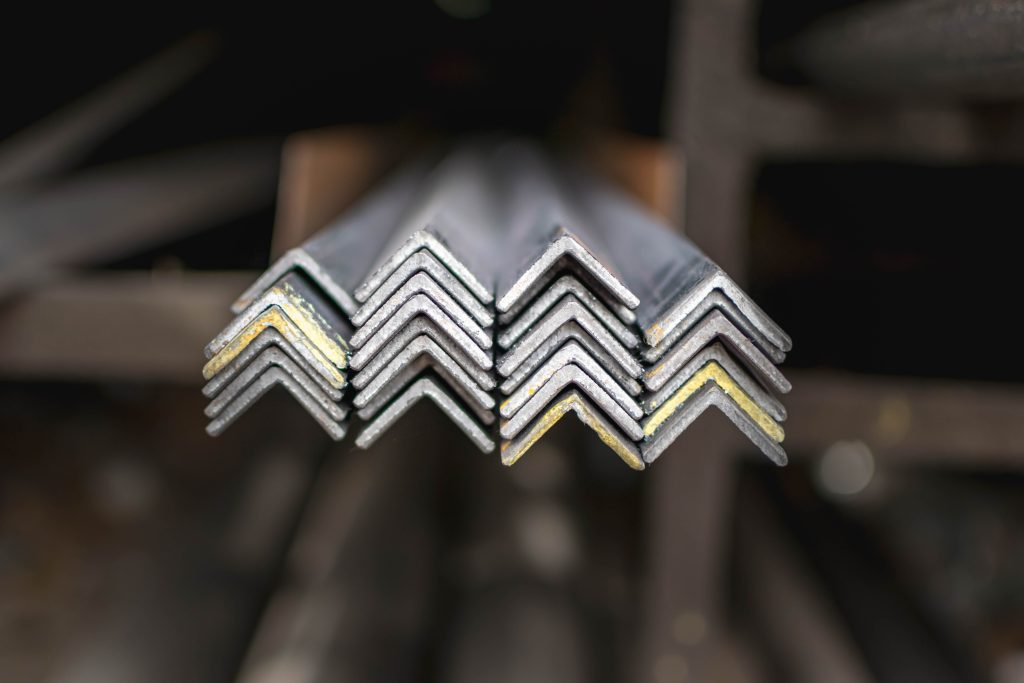

Hot rolled steel equal angles are L-shaped structural profiles with two legs of identical length meeting at a 90-degree angle. It is a is a versatile low cost, low carbon product suitable for a wide variety of applications, made from mild steel via hot rolling process , they feature a rough blue-grey finish and an internal fillet radius to minimize stress concentration.
Areas Of Usage
Building frames and structural supports
Bridges, transmission towers, and industrial racks
Trailers, brackets, bracing, and general repairs
Machinery components and ship building
Specifications
| Equal Angles Size - Weight Table | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Metric Measurement | Imperial Measurement | ||||||||||
| Size (mm) | Unit Weight (kg/m) | Size (mm) | Unit Weight (kg/m) | Size (mm) | Unit Weight (kg/m) | Size (inches) | Unit Weight (kg/m) | Unit Weight (lbs/ft) | |||
| 19x19x2 | 0.576 | 45x45x3 | 1.844 | 90x90x9 | 12.2 | ¾x¾x1/10 | 0.719 | 0.483146 | |||
| 19x19x2,2 | 0.629 | 45x45x4 | 2.74 | 90x90x10 | 13.4 | ¾x¾x1/8 | 0.882 | 0.592677 | |||
| 19x19x2,5 | 0.707 | 45X45X4,5 | 3.06 | 90x90x11 | 14.7 | 1x1x1/10 | 0.973 | 0.653826 | |||
| 19x19x2,8 | 0.784 | 45x45x5 | 3.38 | 90x90x12 | 15.9 | 1x1x1/8 | 1.199 | 0.805691 | |||
| 19x19x3,18 | 0.882 | 45x45x6 | 4 | 100x100x6 | 9.26 | 1x1x3/16 | 1.731 | 1.163178 | |||
| 19x19x3 | 0.835 | 45x45x8 | 5.15 | 100x100x7 | 10.7 | 1x1x¼ | 2.226 | 1.495803 | |||
| 20x20x2 | 0.6 | 50x50x2,8 | 2.178 | 100x100x8 | 12.2 | 1¼x1¼x1/10 | 1.237 | 0.831226 | |||
| 20x20x2,2 | 0.663 | 50x50x3 | 2.325 | 100x100x9 | 13.6 | 1¼x1¼x1/8 | 1.527 | 1.026097 | |||
| 20x20x2,5 | 0.746 | 50x50x4 | 3.06 | 100x100x10 | 15 | 1¼x1¼x3/16 | 2.216 | 1.489083 | |||
| 20x20x2,8 | 0.828 | 50x50x5 | 3.77 | 100x100x12 | 17.8 | 1¼x1¼x¼ | 2.87 | 1.928551 | |||
| 20x20x3 | 0.882 | 50x50x6 | 4.47 | 100x100x14 | 20.56 | 1½x1½x10 | 1.63 | 1.095309 | |||
| 20x20x3,18 | 0.929 | 50x50x7 | 5.15 | 100x100x16 | 23.23 | 1½x1½x1/8 | 1.844 | 1.239111 | |||
| 20x20x4 | 1.14 | 50x50x8 | 5.82 | 110x110x6 | 10.2 | 1½x1½x3/16 | 2.69 | 1.807597 | |||
| 20x20x5 | 1.38 | 50x50x9 | 6.47 | 110x110x8 | 13.4 | 1½x1½x¼ | 3.503 | 2.353907 | |||
| 25x25x2 | 0.76 | 50x50x10 | 7.11 | 110x110x9 | 15 | 1¾x1¾x1/8 | 2.17 | 1.458173 | |||
| 25x25x2,2 | 0.836 | 55x55x4 | 3.38 | 110x110x10 | 16.6 | 1¾x1¾x3/16 | 3.174 | 2.13283 | |||
| 25x25x2,5 | 0.942 | 55x55x5 | 4.18 | 110x110x12 | 19.7 | 1¾x1¾x¼ | 4.145 | 2.785311 | |||
| 25x25x2,8 | 1.048 | 55x55x6 | 4.95 | 120x120x8 | 14.71 | 2x2x1/8 | 2.498 | 1.678578 | |||
| 25x25x3 | 1.117 | 55x55x8 | 6.58 | 120x120x9 | 16.5 | 2x2x3/16 | 3.66 | 2.459406 | |||
| 25x25x4 | 1.45 | 60x60x4 | 3.7 | 120x120x10 | 18.2 | 2x2x¼ | 4.789 | 3.218059 | |||
| 25x25x5 | 1.77 | 60x60x5 | 4.57 | 120x120x11 | 19.9 | 2½x2½x3/16 | 4.622 | 3.105841 | |||
| 25x25x6 | 2.08 | 60x60x6 | 5.42 | 120x120x12 | 21.6 | 2½x2½x¼ | 6.068 | 4.077508 | |||
| 30x30x2 | 0.93 | 60x60x8 | 7.09 | 120x120x13 | 23.3 | 3x3x3/16 | 5.601 | 3.763698 | |||
| 30x30x2,2 | 1.019 | 60x60x9 | 7.9 | 120x120x15 | 26.6 | 3x3x¼ | 7.364 | 4.94838 | |||
| 30x30x2,5 | 1.149 | 60x60x10 | 8.69 | 120x120x16 | 28.3 | 4x4x¼ | 9.934 | 6.67534 | |||
| 30x30x2,8 | 1.278 | 65x65x4 | 4.03 | 130x130x8 | 16 | 4x4x5/16 | 12.292 | 8.259843 | |||
| 30x30x3 | 1.363 | 65x65x5 | 4.97 | 130x130x9 | 17.9 | 4x4x3/8 | 14.61 | 9.817467 | |||
| 30x30x4 | 1.78 | 65x65x6 | 5.91 | 130x130x10 | 19.8 | 4x4x½ | 19.113 | 12.843343 | |||
| 30x30x5 | 2.18 | 65x65x7 | 6.83 | 130x130x12 | 23.5 | ||||||
| 30x30x6 | 2.56 | 65x65x8 | 7.73 | 130x130x14 | 27.2 | ||||||
| 32x32x2 | 0.994 | 65x65x9 | 8.62 | 130x130x16 | 30.8 | ||||||
| 32x32x2,2 | 1.088 | 65x65x10 | 9.49 | 140x140x9 | 19.34 | ||||||
| 32x32x2,5 | 1.228 | 65x65x16 | 14.39 | 140x140x10 | 21.4 | ||||||
| 32x32x2,8 | 1.366 | 70x70x5 | 5.37 | 140x140x12 | 25.4 | ||||||
| 32x32x3 | 1.458 | 70x70x6 | 6.38 | 140x140x14 | 29.4 | ||||||
| 32x32x4 | 1.905 | 70x70x7 | 7.4 | 150x150x9 | 44.2 | ||||||
| 32x32x5 | 2.337 | 70x70x8 | 8.37 | 150x150x10 | 22.98 | ||||||
| 32x32x6 | 2.753 | 70x70x9 | 9.32 | 150x150x12 | 27.3 | ||||||
| 35x35x2 | 1.09 | 70x70x10 | 10.27 | 150x150x14 | 31.6 | ||||||
| 35x35x2,2 | 1.192 | 70x70x12 | 13.08 | 150x150x16 | 35.89 | ||||||
| 35x35x2,5 | 1.346 | 70x70x16 | 15.64 | 150x150x18 | 40.1 | ||||||
| 35x35x2,8 | 1.498 | 75x75x4 | 4.65 | 150x150x20 | 44.2 | ||||||
| 35x35x3 | 1.599 | 75x75x5 | 5.76 | 160x160x10 | 24.6 | ||||||
| 35x35x4 | 2.09 | 75x75x6 | 6.85 | 160x160x12 | 29.3 | ||||||
| 35x35x5 | 2.57 | 75x75x7 | 7.9 | 160x160x14 | 33.9 | ||||||
| 35x35x6 | 3 | 75x75x8 | 8.99 | 160x160x16 | 38.4 | ||||||
| 38x38x2,5 | 1.463 | 75x75x9 | 10.01 | 160x160x18 | 42.9 | ||||||
| 38x38x3 | 1.49 | 75x75x10 | 11.1 | 180x180x14 | 38.3 | ||||||
| 38x38x3 | 1.74 | 75x75x12 | 13.08 | 180x180x16 | 43.5 | ||||||
| 38x38x4 | 2.282 | 80x80x5 | 6.17 | 180x180x18 | 48.6 | ||||||
| 38x38x5 | 2.808 | 80x80x6 | 7.34 | 180x180x20 | 53.7 | ||||||
| 38x38x6 | 3.318 | 80x80x7 | 8.49 | 180x180x22 | 58.65 | ||||||
| 40x40x2,5 | 1.551 | 80x80x8 | 9.63 | 200x200x16 | 48.5 | ||||||
| 40x40x2,8 | 1.727 | 80x80x9 | 10.7 | 200x200x18 | 54.25 | ||||||
| 40x40x3 | 1.843 | 80x80x10 | 11.9 | 200x200x20 | 59.9 | ||||||
| 40x40x4 | 2.42 | 80x80x12 | 14.03 | 200x200x22 | 65.55 | ||||||
| 40x40x5 | 2.97 | 90x90x5 | 6.97 | 200x200x24 | 71.1 | ||||||
| 40x40x6 | 3.52 | 90x90x6 | 8.3 | 200x200x25 | 73.9 | ||||||
| 40x40x8 | 4.55 | 90x90x7 | 9.61 | 200x200x26 | 76.6 | ||||||
| 45x45x2,8 | 1.958 | 90x90x8 | 10.9 | 200x200x28 | 82.03 | ||||||
