IPE Beams
Explore the key specifications of IPE Beams for accurate, project-ready material selection.
- 80 IPE: 80x42x3,8 · 6
- 100 IPE: 100x55x4,1 · 8.1
Overview

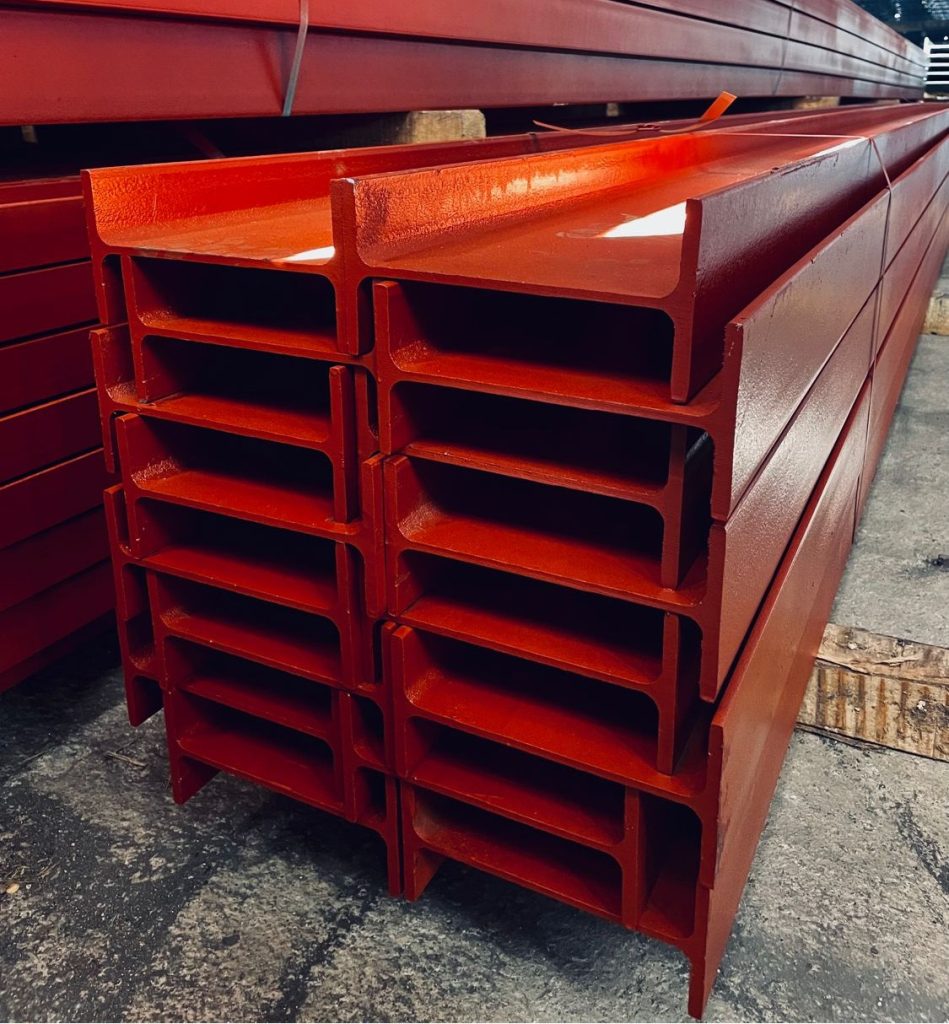

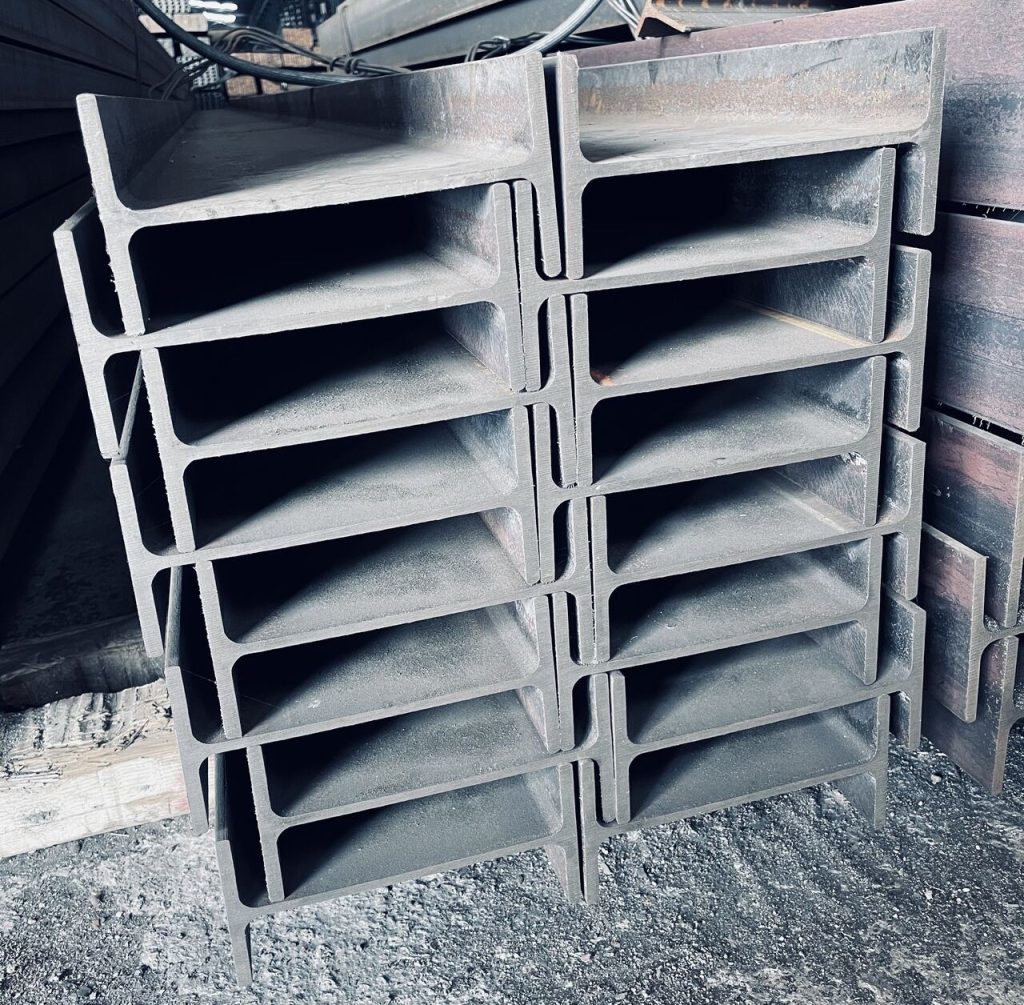

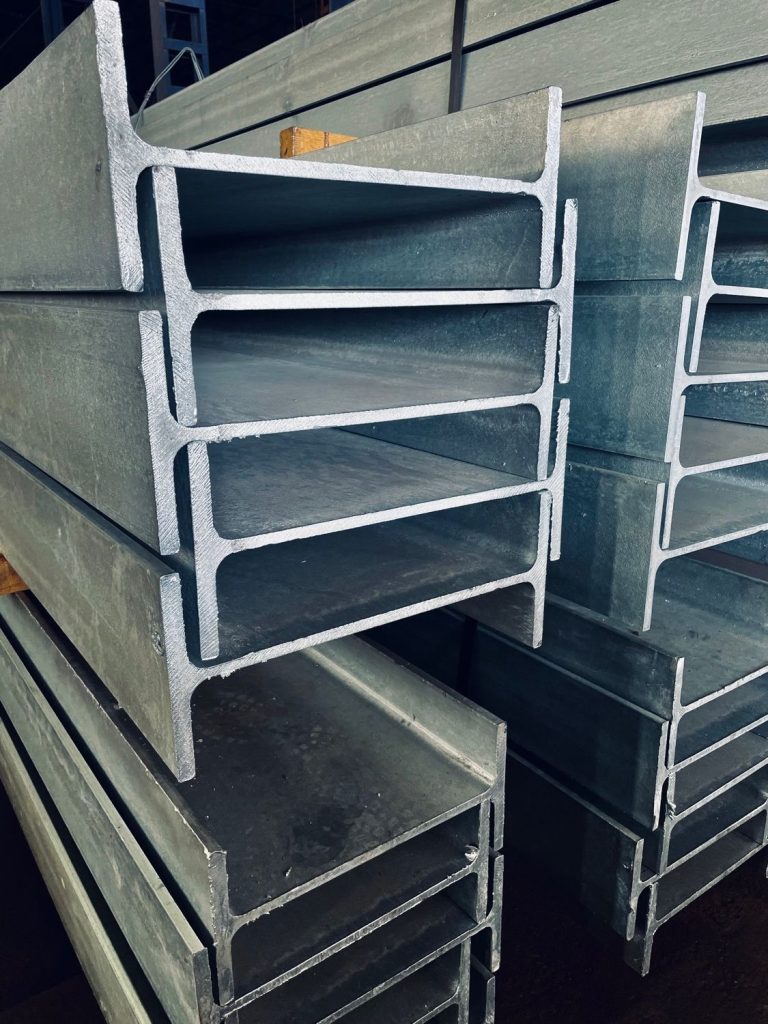

Hot rolled steel I beams are heavy-duty structural metal components shaped at high temperatures above their recrystallization point. They feature an I shaped cross-section that resists bending, and they are widely used in building frames, bridges, and industrial supports.
Areas Of Usage
Multi-story buildings: Acting as primary columns and floor joists in high-rises and commercial facilities.
Industrial warehouses: Creating wide, clear-span open spaces without internal support posts.
Roof supports and purlins: Distributing weight across wide structural frameworks.
Bridges and overpasses: Supporting massive dynamic traffic loads over extended spans.
Trestles and support piers: Providing rigidity and deep load transfer in civil engineering projects.
Crane runways: Handling the moving, repetitive stress of heavy lifting machinery.
Manufacturing plants: Forming structural skids and support gantries for heavy-duty industrial gear.
Specifications
| IPE | ||
|---|---|---|
| Material | Size (mm) | Unit Weight (kg/m) |
| 80 IPE | 80x42x3,8 | 6 |
| 100 IPE | 100x55x4,1 | 8.1 |
| 120 IPE | 120x64x4,4 | 10.4 |
| 140 IPE | 140x73x4,7 | 12.9 |
| 160 IPE | 160x82x5 | 15.8 |
| 180 IPE | 180x91x5,3 | 18.8 |
| 200 IPE | 200x100x5,6 | 22.4 |
| 220 IPE | 220x110x5,9 | 26.2 |
| 240 IPE | 240x120x6,2 | 30.7 |
| 270 IPE | 270x135x6,6 | 36.1 |
| 300 IPE | 300x150x7,1 | 42.2 |
| 330 IPE | 330x160x7,5 | 49.1 |
| 360 IPE | 360x170x8 | 57.1 |
| 400 PE | 400x180x8,6 | 66.3 |
| 450 IPE | 450x190x9,4 | 77.6 |
| 500 IPE | 500x200x10,2 | 90.7 |
| 550 IPE | 550x210x11,1 | 106 |
| 600 IPE | 600x220x12 | 122 |
| 750 IPE | 753x265x13,2 | 173 |
