Wire Rod

Explore the key specifications of Wire Rod for accurate, project-ready material selection.

  • Diameter (mm): Circumference Length (cm) · Cross Section Area (cm2) · Weight (kg/m)
  • Quality: C% · Mn% · Si%
Request a Quote

Overview

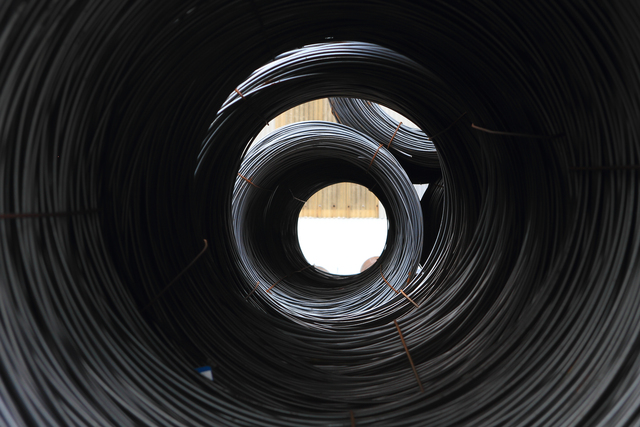

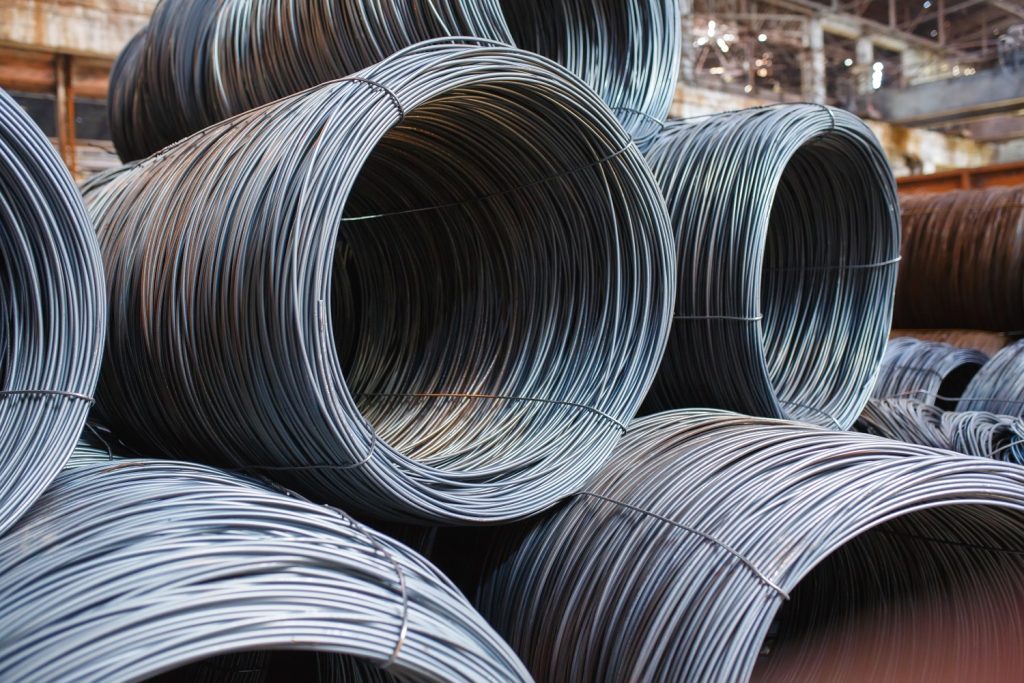

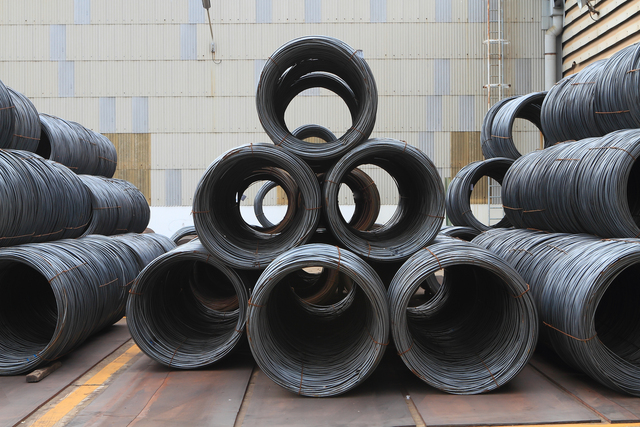

Wire rod is a semi-finished long steel product manufactured by hot rolling billets on continuous rolling mills. It is wound up in coils.

Steel wire rod is used as raw material for the drawing of wire intended for different applications, as well as in the manufacture of mesh, bolts, screws, nuts, nails, welding rod, springs, ropes and concrete reinforcing elements.

Available Qualities

Application Available Grades
For Wire Drawing SAE1005, SAE1006, SAE1008, SAE1010
For Welded Wire Mesh SAE1008, SAE1010, SAE1012, SAE1015
For Cold Drawing and Peeling SAE1018, SAE1022, SAE1026, SAE1030, SAE1035, SAE1040, SAE1050
Suitable for Spring and Ropes SAE1045, SAE1065, SAE1070
Suitable for Welding Electrodes S1, SG2, SG3
Cold Heading and Cold Extrusion Steels (Nuts and Bolts) SAE1006C, 17MNB3, 20MNB4, 23MNB4, 27MNB4, 30MNB4

Dimensions

Dimensions
Diameter (mm) Circumference Length (cm) Cross Section Area (cm2) Weight (kg/m)
4.5 1.413 0.158963 0.124786
5 1.57 0.19625 0.154056
5.5 1.727 0.237463 0.186408
6 1.884 0.2826 0.221841
6.5 2.041 0.331662 0.260355
7 2.198 0.38465 0.30195
7.5 2.355 0.441563 0.346627
8 2.512 0.5024 0.394384
8.5 2.669 0.567163 0.445223
9 2.826 0.63585 0.499142
9.5 2.983 0.708463 0.556143
10 3.14 0.785 0.616225
10.5 3.297 0.865463 0.679388
11 3.454 0.94985 0.745632
11.5 3.611 1.038163 0.814958
12 3.768 1.1304 0.887364
12.5 3.925 1.226563 0.962852
13 4.082 1.32665 1.04142
13.5 4.239 1.430663 1.12307
14 4.396 1.5386 1.207801
14.5 4.553 1.650463 1.295613
15 4.71 1.76625 1.386506
15.5 4.867 1.885963 1.480481
16 5.024 2.0096 1.577536
16.5 5.181 2.137163 1.677673
17 5.338 2.26865 1.78089
17.5 5.495 2.404063 1.887189
18 5.652 2.5434 1.996569
18.5 5.809 2.686662 2.10903
19 5.966 2.83385 2.224572
19.5 6.123 2.984963 2.343196
20 6.28 3.14 2.4649
20.5 6.437 3.298963 2.589686
21 6.594 3.46185 2.717552
21.5 6.751 3.628663 2.8485
22 6.908 3.7994 2.982529
22.5 7.065 3.974063 3.119639
23 7.222 4.15265 3.25983
23.5 7.379 4.335163 3.403103
24 7.536 4.5216 3.549456
24.5 7.693 4.711963 3.698891
25 7.85 4.90625 3.851406
26 8.164 5.3066 4.165681
27 8.478 5.72265 4.49228
DIN EN 10017
DIN EN 10017
Diameter (mm) Size Tolerance Diameter (mm) Ovality Tolerance
4.5 ±0,30 4.5 0.48
5 5
5.5 5.5
6 6
6.5 6.5
7 7
7.5 7.5
8 8
8.5 8.5
9 9
9.5 9.5
10 ±0,40 10 0.64
10.5 10.5
11 11
11.5 11.5
12 12
12.5 12.5
13 13
13.5 13.5
14 14
14.5 14.5
15 15
15.5 15.5
16 ±0,50 16 0.8
16.5 16.5
17 17
17.5 17.5
18 18
18.5 18.5
19 19
19.5 19.5
20 20
20.5 20.5
21 21
21.5 21.5
22 22
22.5 22.5
23 23
23.5 23.5
24 24
24.5 24.5
25 25
26 26
27 27
* Ovality Tolerance (80% of total diameter tolerance)
DIN EN 10108
DIN EN 10108
Diameter (mm) Size Tolerance Class A Size Tolerance Class B Diameter (mm) Ovality Tolerance Class A Ovality Tolerance Class B
4.5 ±0,20 ±0,15 4.5 0.32 0.24
5 5
5.5 5.5
6 6
6.5 6.5
7 7
7.5 7.5
8 8
8.5 8.5
9 9
9.5 9.5
10 10
10.5 ±0,25 ±0,20 10.5 0.4 0.32
11 11
11.5 11.5
12 12
12.5 12.5
13 13
13.5 13.5
14 14
14.5 14.5
15 15
15.5 15.5
16 ±0,30 ±0,25 16 0.48 0.4
16.5 16.5
17 17
17.5 17.5
18 18
18.5 18.5
19 19
19.5 19.5
20 20
20.5 20.5
21 21
21.5 21.5
22 ±0,35 ±0,30 22 0.56 0.48
22.5 22.5
23 23
23.5 23.5
24 24
24.5 24.5
25 25
26 26
27 27

Qualities & Chemical

For Wire Drawing
Chemical Composition Mechanical Properties
Quality C% Mn% Si% P% S% Cr% Ni% Al% Cu% Unit Tensile Strength Yield Strength Elastic Modulus Bulk Modulus Shear Modulus Poisson's Ratio Elongation at break Reduction Area Hardness (Brinell) Hardness (Knoop) Hardness (Rockwell B) Hardness (Vickers)
SAE1005 min - - - - - - - - - metric - - 190-210 GPa 140 Gpa 80.0 Gpa 0,27-0,30 - - - - - -
max 0.06 0.35 - 0.04 0.05 0.07 0.15 - - imperial - - 27557-30458 ksi 20300 ksi 11600 ksi 0,27-0,30 - - - - - -
SAE1006 min - 0.25 - - - - - - - metric 330 Mpa 285 Mpa 190-210 GPa 140 Gpa 80.0 Gpa 0,27-0,30 0.2 0.45 95 113 55 98
max 0.08 0.4 - 0.04 0.05 - - - - imperial 47900 psi 41300 psi 27557-30458 ksi 20300 ksi 11600 ksi 0,27-0,30 0.2 0.45 95 113 55 98
SAE1008 min - 0.3 - - - - - - - metric 340 Mpa 285 MPa 190-210 GPa 200 Gpa 80.0 Gpa 0,27-0,30 0.2 0.45 95 113 55 98
max 0.1 0.5 - 0.04 0.05 - - - - imperial 49300 psi 41300 psi 27557-30458 ksi 29000 ksi 11600 ksi 0,27-0,30 0.2 0.45 95 113 55 98
SAE1010 min 0.08 0.3 - - - - - - - metric 365 Mpa 305 Mpa 190-210 GPa 140 Gpa 80.0 Gpa 0,27-0,30 0.2 0.4 105 123 60 108
max 0.13 0.6 - 0.04 0.05 - - - - imperial 52900 psi 44200 psi 27557-30458 ksi 20300 ksi 11600 ksi 0,27-0,30 0.2 0.4 105 123 60 108
For Welded Wire Mesh
Chemical Composition Mechanical Properties
Quality C% Mn% Si% P% S% Cr% Ni% Al% Cu% Unit Tensile Strength Yield Strength Elastic Modulus Bulk Modulus Shear Modulus Poisson's Ratio Elongation at break Reduction Area Hardness (Brinell) Hardness (Knoop) Hardness (Rockwell B) Hardness (Vickers)
SAE1008 min - 0.3 - - - - - - - metric 340 Mpa 285 MPa 190-210 GPa 200 Gpa 80.0 Gpa 0,27-0,30 0.2 0.45 95 113 55 98
max 0.1 0.5 - 0.04 0.05 - - - - imperial 49300 psi 41300 psi 27557-30458 ksi 29000 ksi 11600 ksi 0,27-0,30 0.2 0.45 95 113 55 98
SAE1010 min 0.08 0.3 - - - - - - - metric 365 Mpa 305 Mpa 190-210 GPa 140 Gpa 80.0 Gpa 0,27-0,30 0.2 0.4 105 123 60 108
max 0.13 0.6 - 0.04 0.05 - - - - imperial 52900 psi 44200 psi 27557-30458 ksi 20300 ksi 11600 ksi 0,27-0,30 0.2 0.4 105 123 60 108
SAE1012 min 0.1 0.3 - - - - - - - metric 370 Mpa 310 Mpa 190-210 GPa 140 Gpa 80.0 Gpa 0,27-0,30 0.19 0.4 105 123 60 108
max 0.15 0.6 - 0.04 0.05 - - - - imperial 53700 psi 45000 psi 27557-30458 ksi 20300 ksi 11600 ksi 0,27-0,30 0.19 0.4 105 123 60 108
SAE1015 min 0.13 0.3 - - - - - - - metric 385 Mpa 325 MPa 190-210 GPa 140 Gpa 80.0 Gpa 0,27-0,30 0.18 0.4 111 129 64 115
max 0.18 0.6 - 0.04 0.05 - - - - imperial 55800 psi 47100 psi 27557-30458 ksi 20300 ksi 11600 ksi 0,27-0,30 0.18 0.4 111 129 64 115
For Cold Drawing and Peeling
Chemical Composition Mechanical Properties
Quality C% Mn% Si% P% S% Cr% Ni% Al% Cu% Unit Tensile Strength Yield Strength Elastic Modulus Bulk Modulus Shear Modulus Poisson's Ratio Elongation at break Reduction Area Hardness (Brinell) Hardness (Knoop) Hardness (Rockwell B) Hardness (Vickers)
SAE1018 min 0.15 0.6 - - - - - - - metric 440 Mpa 370 MPa 205 GPa 140 Gpa 80.0 Gpa 0.29 0.15 0.4 126 145 71 131
max 0.2 0.9 - 0.04 0.05 - - - - imperial 63800 psi 53700 psi 29700 ksi 20300 ksi 11600 ksi 0.29 0.15 0.4 126 145 71 131
SAE1022 min 0.17 0.7 - - - - - - - metric 380 Mpa 205 Mpa - 140 Gpa 80.0 Gpa 0.29 0.25 0.5 111 128 - 112
max 0.23 1 - 0.04 0.05 - - - - imperial 55100 psi 29700 psi - 20300 ksi 11600 ksi 0.29 0.25 0.5 111 128 - 112
SAE1026 min 0.22 0.6 - - - - - - - metric 490 Mpa 415 Mpa 190-210 GPa 140 Gpa 80.0 Gpa 0,27-0,30 0.15 0.4 143 163 78 149
max 0.28 0.9 - 0.04 0.05 - - - - imperial 71100 psi 60200 psi 27557-30458 ksi 20300 ksi 11600 ksi 0,27-0,30 0.15 0.4 143 163 78 149
SAE1030 min 0.27 0.6 - - - - - - - metric 525 Mpa 440 Mpa 190-210 GPa 140 Gpa 80.0 Gpa 0,27-0,30 0.12 0.35 149 169 80 155
max 0.34 0.9 - 0.04 0.05 - - - - imperial 76100 psi 63800 psi 27557-30458 ksi 20300 ksi 11600 ksi 0,27-0,30 0.12 0.35 149 169 80 155
SAE1035 min 0.31 0.6 - - - - - - - metric 585 Mpa 370 MPa 190-210 GPa 140 Gpa 80.0 Gpa 0,27-0,30 0.3 0.53 183 204 89 192
max 0.38 0.9 - 0.04 0.05 - - - - imperial 84800 psi 53700 psi 27557-30458 ksi 20300 ksi 11600 ksi 0,27-0,30 0.3 0.53 183 204 89 192
SAE1040 min 0.37 0.6 - - - - - - - metric 620 Mpa 415 Mpa 190-210 GPa 140 Gpa 80.0 Gpa 0,27-0,30 0.25 0.5 201 223 93 211
max 0.44 0.9 - 0.04 0.05 - - - - imperial 89900 psi 60200 psi 27557-30458 ksi 20300 ksi 11600 ksi 0,27-0,30 0.25 0.5 201 223 93 211
SAE1050 min 0.47 0.6 - - - - - - - metric 690 Mpa 580 Mpa 190-210 GPa 140 Gpa 80.0 Gpa 0,27-0,30 0.1 0.3 197 219 92 207
max 0.55 0.9 - 0.04 0.05 - - - - imperial 100000 psi 84100 psi 27557-30458 ksi 20300 ksi 11600 ksi 0,27-0,30 0.1 0.3 197 219 92 207
Suitable for Spring and Ropes
Chemical Composition Mechanical Properties
Quality C% Mn% Si% P% S% Cr% Ni% Al% Cu% Unit Tensile Strength Yield Strength Elastic Modulus Bulk Modulus Shear Modulus Poisson's Ratio Elongation at break Reduction Area Hardness (Brinell) Hardness (Knoop) Hardness (Rockwell B) Hardness (Vickers)
SAE1045 min 0.42 0.6 - - - - - - - metric 565 Mpa 310 Mpa 190-210 GPa 140 Gpa 80.0 Gpa 0.29 0.16 0.4 163 184 84 170
max 0.5 0.9 - 0.04 0.05 - - - - imperial 81900 psi 45000 psi 27557-30458 ksi 20300 ksi 11600 ksi 0.29 0.16 0.4 163 184 84 170
SAE1065 min 0.6 0.6 - - - - - - - metric 635 Mpa 490 Mpa 200 Gpa 140 Gpa 80.0 Gpa 0,27-0,30 0.1 0.45 187 209 90 196
max 0.7 0.9 - 0.04 0.05 - - - - imperial 92100 psi 71100 psi 29007 ksi 20300 ksi 11600 ksi 0,27-0,30 0.1 0.45 187 209 90 196
SAE1070 min 0.65 0.6 - - - - - - - metric - - 190-210 GPa - - 0,27-0,30 - - - - - -
max 0.75 0.9 - 0.04 0.05 - - - - imperial - - 27557-30458 ksi - - 0,27-0,30 - - - - - -
Suitable for Welding Electrodes
Chemical Composition
Quality C% Mn% Si% P% S% Cr% Ni% Al% Cu%
S1 min 0.06 0.5 - - - - - - -
max 0.1 0.6 0.05 0.025 0.025 0.07 0.1 0.01 0.15
SG2 min 0.06 1.4 0.8 - 0.01 - - - -
max 0.1 1.6 0.9 0.02 0.02 0.1 0.15 0.02 0.1
SG3 min 0.07 1.6 0.8 - 0.012 - - - -
max 0.13 1.85 1.15 0.02 0.016 0.15 0.15 0.02 0.2
Cold Heading and Cold Extrusion Steels (Nuts and Bolts)
Chemical Composition
Quality C% Mn% Si% P% S% Cr% B% Al% Cu%
17MnB3 min 0.15 0.7 - - - 0.15 0.0008 - -
max 0.2 1 0.4 0.03 0.035 0.35 0.005 - -
20MnB4 min 0.18 0.9 - - - - 0.0008 - -
max 0.23 1.2 0.3 0.025 0.025 0.3 0.005 - 0.25
23MnB4 min 0.2 0.9 - - - - 0.0008 - -
max 0.25 1.2 0.3 0.025 0.025 0.3 0.005 - 0.25
27MnB4 min 0.25 0.9 0.15 - - - 0.0008 - -
max 0.3 1.2 0.3 0.025 0.025 0.3 0.005 - 0.25
30MnB4 min 0.27 0.8 - - - - 0.0008 - -
max 0.32 1.1 0.3 0.025 0.025 0.3 0.005 - 0.25
