Rectangular Hollow Sections

Explore the key specifications of Rectangular Hollow Sections for accurate, project-ready material selection.

  • Outside Diameter: 10x15 to 200x300 mm
  • Wall Thickness: 0,90 to 10,0 mm
Request a Quote

Overview

Rectangular Hollow Sections are used in a wide range of structural and mechanical applications and these sections are requiring minimal edge preparation for joining and welding.

Specifications

Rectangular Hollow Section (HR)
Property Value
Outside Diameter 10x15 to 200x300 mm
Wall Thickness 0,90 to 10,0 mm
Length 4,0 - 14,0 m
Rectangular Hollow Section (CR)
Property Value
Outside Diameter 10x20 to 40x60 mm
Wall Thickness 0,50 to 3,0 mm
Length 4,0 - 8,0 m
Hot Rolled
Hot Rolled Rectangular Hollow Sections
Outside Diameter (mm) Wall Thickness (mm)
0.9 1 1.2 1.5 2 2.5 3 3.5 4 4.5 5 6 8 10
Unit Weight (kg/m)
15x10 0.31 0.34 0.4 0.47 - - - - - - - - - -
20x10 0.38 0.42 0.49 0.59 0.74 - - - - - - - - -
20x15 0.45 0.5 0.59 0.71 - - - - - - - - - -
25x15 0.52 0.58 0.68 0.83 1.05 - - - - - - - - -
25x20 0.59 0.65 0.77 0.94 1.21 - - - - - - - - -
30x10 0.52 0.58 0.68 0.83 1.05 - - - - - - - - -
30x15 0.59 0.65 0.77 0.94 1.21 - - - - - - - - -
30x20 0.66 0.73 0.87 1.06 1.36 1.64 1.89 - - - - - - -
35x15 0.66 0.73 0.87 1.06 1.36 - - - - - - - - -
35x25 0.81 0.89 1.06 1.3 1.68 2.03 2.36 - - - - - - -
40x20 0.81 0.89 1.06 1.3 1.68 2.03 2.36 - - - - - - -
40x25 0.88 0.97 1.15 1.41 1.83 2.23 - - - - - - - -
40x30 0.95 1.05 1.24 1.53 1.99 2.42 2.83 - - - - - - -
50x20 0.95 1.05 1.24 1.53 1.99 2.42 2.83 - - - - - - -
50x25 - 1.13 1.34 1.65 2.15 2.62 3.07 - - - - - - -
50x30 - 1.2 1.43 1.77 2.31 2.82 3.3 3.76 4.2 - - - - -
50x40 - - 1.62 2 2.62 3.21 3.77 - - - - - - -
60x20 - - 1.43 1.77 2.31 2.82 3.3 - - - - - - -
60x30 - - 1.62 2 2.62 3.21 3.77 - - - - - - -
60x40 - 1.52 1.81 2.24 2.93 3.6 4.25 - - - - - - -
70x30 - - 1.81 2.24 2.93 3.6 4.25 - - - - - - -
70x50 - - - 2.71 3.56 4.39 5.19 5.96 6.71 7.43 8.13 - - -
75x50 - - - 2.83 3.72 4.58 5.42 6.24 7.02 7.79 8.52 - - -
80x40 - 1.83 2.19 2.71 3.56 4.39 5.19 5.96 6.71 7.43 8.13 - - -
80x50 - - - 2.95 3.88 4.78 5.66 6.51 7.34 8.14 8.91 - - -
80x60 - - - 3.18 4.19 5.17 6.13 7.06 7.97 8.85 9.7 11.33 - -
90x40 - - - 2.95 3.88 4.78 5.66 6.51 7.34 8.14 8.91 - - -
90x50 - - - 3.18 4.19 5.17 6.13 7.06 7.97 8.85 9.7 11.33 - -
90x60 - - - 3.42 4.5 5.56 6.6 7.61 8.59 9.55 10.48 12.27 - -
90x70 - - - 3.65 4.82 5.96 7.07 8.16 9.22 10.26 11.27 13.21 - -
100x40 - - - 3.18 4.19 5.17 6.13 7.06 7.97 8.85 9.7 11.33 - -
100x50 - - - 3.42 4.5 5.56 6.6 7.61 8.59 9.55 10.48 12.27 - -
100x60 - - - - 4.82 5.96 7.07 8.16 9.22 10.26 11.27 13.21 - -
100x80 - - - - 5.45 6.74 8.01 9.26 10.48 11.67 12.84 15.1 - -
120x40 - - - - 4.82 5.96 7.07 8.16 9.22 10.26 11.27 13.21 - -
120x60 - - - - 5.45 6.74 8.01 9.26 10.48 11.67 12.84 15.1 - -
120x80 - - - - 6.07 7.53 8.96 10.36 11.73 13.08 14.41 16.98 21.39 -
120x100 - - - - - 8.31 9.9 11.46 12.99 14.5 15.98 18.87 - -
140x60 - - - - 6.07 7.53 8.96 10.36 11.73 13.08 14.41 16.98 - -
140x80 - - - - - 8.31 9.9 11.46 12.99 14.5 15.98 18.87 - -
140x100 - - - - - 9.1 10.84 12.56 14.25 15.91 17.55 20.75 - -
150x50 - - - - 6.07 7.53 8.96 10.36 11.73 13.08 14.41 16.98 - -
150x70 - - - - 6.7 8.31 9.9 11.46 12.99 14.5 15.98 18.87 - -
150x100 - - - - - 9.49 11.31 13.11 14.87 16.62 18.33 21.69 27.67 33.41
160x40 - - - - 6.07 7.53 8.96 10.36 11.73 13.08 14.41 16.98 - -
160x80 - - - - - 9.1 10.84 12.56 14.25 15.91 17.55 20.75 26.41 31.84
160x140 - - - - - - 13.67 15.85 18.01 20.15 22.26 26.4 33.95 41.26
180x100 - - - - - - 12.72 14.75 16.76 18.74 20.69 24.52 31.43 38.12
180x140 - - - - - - 14.61 16.95 19.27 21.56 23.83 28.29 36.46 44.4
200x100 - - - - - - 13.67 15.85 18.01 20.15 22.26 26.4 33.95 41.26
200x120 - - - - - - - - 19.27 21.56 23.83 28.29 36.46 -
200x150 - - - - - - - 18.6 21.15 23.68 26.18 31.11 40.23 49.11
200x160 - - - - - - - 19.15 21.78 24.39 26.97 32.05 41.48 50.68
250x100 - - - - - - - - 21.15 23.68 26.18 31.11 40.23 -
250x150 - - - - - - - 21.35 24.29 27.21 30.11 35.82 46.51 56.96
300x200 - - - - - - - 26.84 30.57 34.28 37.96 45.24 59.07 72.66
Cold Rolled
Cold Rolled Rectangular Hollow Sections
Outside Diameter (mm) Wall Thickness (mm)
0.5 0.6 0.7 0.8 0.9 1 1.2 1.4 1.5 2 2.5 3
Unit Weight (kg/m)
20x10 0.23 0.27 0.31 0.36 0.4 0.44 0.52 0.59 0.63 0.81 - -
25x15 0.31 0.36 0.42 0.48 0.54 0.59 0.71 0.81 0.87 1.12 1.36 1.45
30x10 0.31 0.36 0.42 0.48 0.54 0.59 0.71 0.81 0.87 1.12 1.36 1.45
30x15 - 0.41 0.48 0.54 0.61 0.67 0.8 0.92 0.99 1.28 1.56 1.69
30x20 - 0.46 0.53 0.61 0.68 0.75 0.89 1.03 1.1 1.44 1.76 1.92
35x15 - 0.46 0.53 0.61 0.68 0.75 0.89 1.03 1.1 1.44 1.76 1.92
40x10 - 0.46 0.53 0.61 0.68 0.75 0.89 1.03 1.1 1.44 1.76 1.92
40x20 - 0.55 0.64 0.73 0.82 0.91 1.08 1.25 1.34 1.75 2.15 2.39
40x30 - - - 0.86 0.96 1.07 1.27 1.47 1.57 2.07 2.54 2.86
50x10 - 0.55 0.64 0.73 0.82 0.91 1.08 1.25 1.34 1.75 2.15 2.39
50x20 - - - 0.86 0.96 1.07 1.27 1.47 1.57 2.07 2.54 2.86
50x25 - - - 0.92 1.03 1.14 1.37 1.58 1.69 2.22 2.74 3.1
50x30 - - - 0.98 1.1 1.22 1.46 1.69 1.81 2.38 2.93 3.33
60x30 - - - 1.11 1.24 1.38 1.65 1.91 2.05 2.69 3.33 3.8
60x40 - - - - - 1.54 1.84 2.13 2.28 3.01 3.72 4.28
Specifications
Available Qualities
Steel Grade Production Standard
S235JRH, S275J0H, S275J2H, S355J0H, S355J2H, S355K2H, S275NH, S275NLH, S275MH, S275MLH, S355NH, S355NLH, S355MH, S355MLH, S420MH, S420MLH EN 10219 (TS EN 10219) (CE)
S235JRH, S275J0H, S275J2H, S355J0H, S355J2H, S355K2H, S275NH, S275NLH, S275MH, S275MLH, S355NH, S355NLH, S355MH, S355MLH, S420MH, S420MLH SI 1458-1
Grade A, Grade B, Grade C, Grade D ASTM A500
E155, E190, E195, E220, E235, E260, E275, E320, E355, E370, E420 EN 10305-5 (TS EN 10305-5)
C250, C350, C450, C250L0, C350L0 AS/NZS 1163
On Demand
Heat Treatment to weld seam and full body for normalization and stress relieving

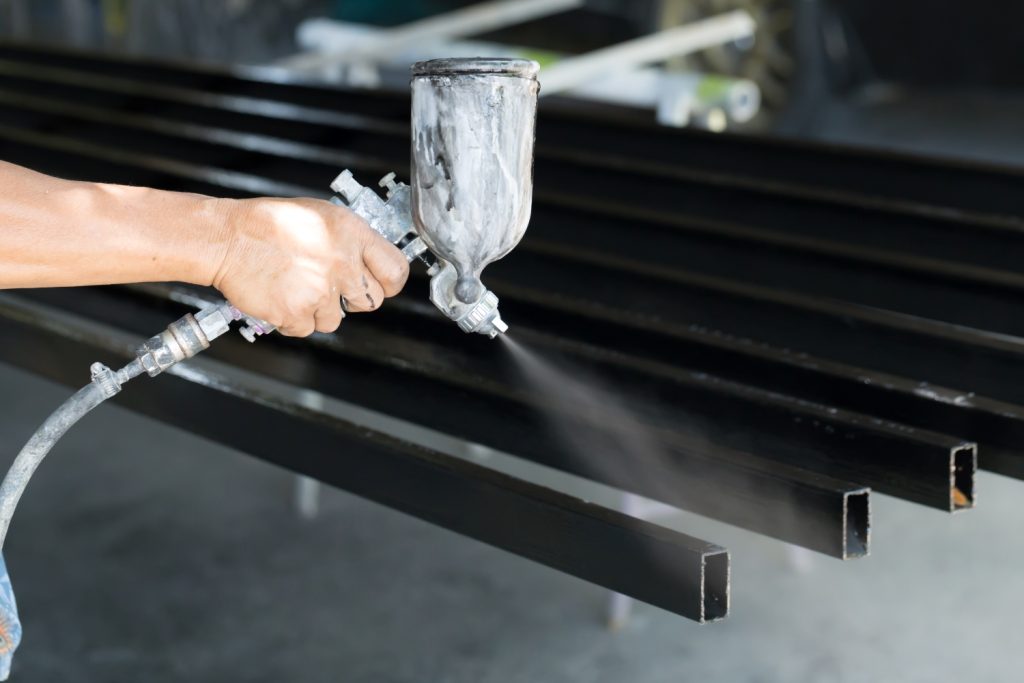

Surface Galvanizing, Primer Paint Coating, Protective Oil
