Coiled Rebar

Coiled Rebar
Steel

Coiled Rebar

Explore the key specifications of Coiled Rebar for accurate, project-ready material selection.

  • Diameter Ø: Between 5,5mm and 26 mm
  • Height (C): 1400 - 1850mm
Request a Quote

Overview

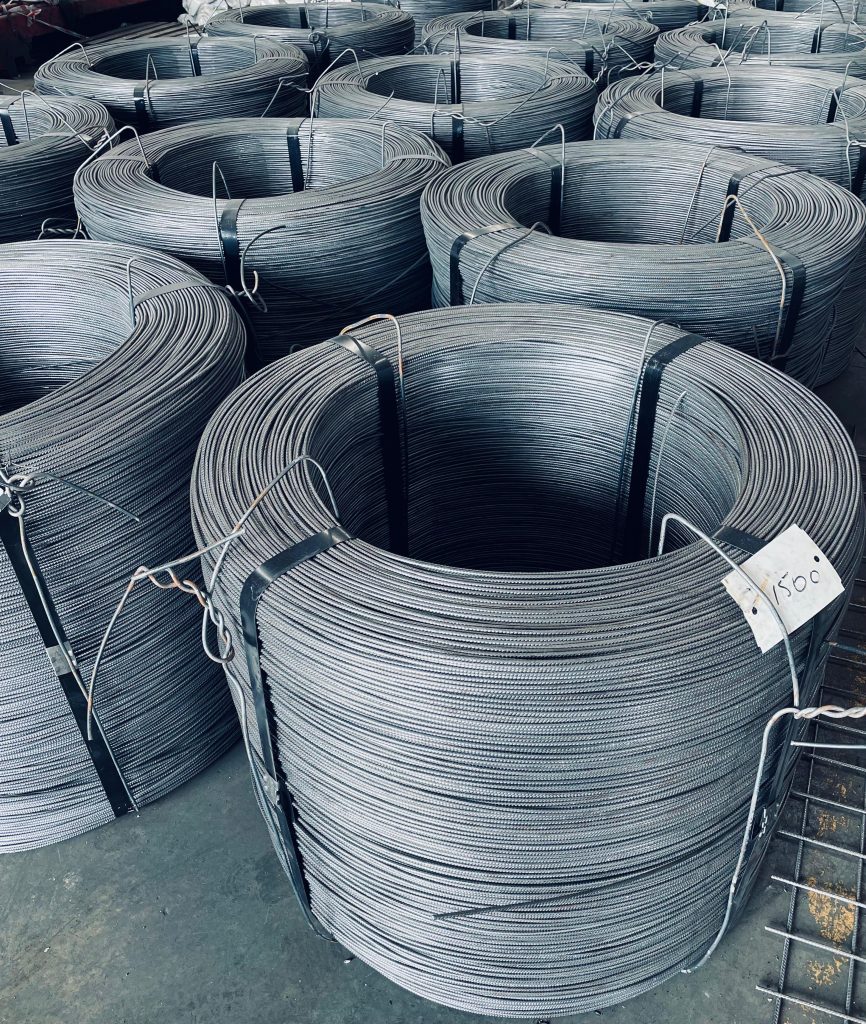

Coiled rebar is used in the same applications as straight rebar. Coils are preferred by some customers with automatic straightening and cutting machines.

Specifications

Product Specifications
Property Value
Diameter Ø Between 5,5mm and 26 mm
O. D. (A) 1150/1250mm
I. D. (B) 850mm
Height (C) 1400 - 1850mm
Weight min. 1900 - max. 3200 kgs
Dimensions
Diameter (mm) Circumference Length (cm) Cross Section Area (cm2) Weight (kg/m)
8 2.512 0.5024 0.394384
10 3.14 0.785 0.616225
12 3.768 1.1304 0.887364
14 4.396 1.5386 1.207801
16 5.024 2.0096 1.577536
18 5.652 2.5434 1.996569
20 6.28 3.14 2.4649
22 6.908 3.7994 2.982529
24 7.536 4.5216 3.549456
25 7.85 4.90625 3.851406
26 8.164 5.3066 4.165681
28 8.792 6.1544 4.831204
30 9.42 7.065 5.546025
32 10.048 8.0384 6.310144
36 11.304 10.1736 7.986276
40 12.56 12.56 9.8596
Quality Standards
ChemicalFeatures ( max. ) % Mechanical Features (min.)
Country Standard Grade C Mn Si P S N Cu Ce (Yield Strength) (Tensile Strength) (Ratio) (Elongation) %
Re : N/mm2 ( Kg/mm2) Rm : N/mm2 ( Kg/mm2) Rm / Re
TURKEY TS 708/2016 S 220 (plain) 0.25 0.05 0.05 220 340 (34.68) 1.2 18 (Lo=5d)
S 420 0.45 0.05 0.05 420 -546 500 ( 51,0 ) ≥1,15 10 (Lo=5d)
B 420B 0.22 0.05 0.05 0.012 0.8 0.5 420 Re x 1.08 1.08 12 (Lo=5d) // %Agt Min. 5
B 420C 0.22 0.05 0.05 0.012 0.8 0.5 420 - 546 Re x 1,15 ≥1,15, <1,35 12 (Lo=5d) // %Agt Min. 7.5
B 500B 0.22 0.05 0.05 0.012 0.8 0.5 500 Re x 1.08 1.08 12 (Lo=5d) // %Agt Min. 5
B 500C 0.22 0.05 0.05 0.012 0.8 0.5 500 - 650 Re x 1,15 ≥1,15, <1,35 12 (Lo=5d) // %Agt Min. 7.5
UNITED KINGDOM BS 4482:2005 GR 250 0.22 0.05 0.05 0.012 0.8 0.42 250 Re x 1,15 1.15 Agt % : 5 (min)
BS 4449: 1997 GR 250 0.25 0.06 0.06 0.012 0.42 250 Re x 1,15 1.15 22 ( Lo= 5Xd)
BS 4449: 1997 GR 460 0.25 0.05 0.05 0.012 0.51 460 Re x 1,08 1.08 14 ( Lo= 5Xd)
BS 4449: 2005+A3 2016 B 500B 0.22 0.05 0.05 0.012 0.8 0.5 500 - 650 Re x 1,08 1.08 Agt % : 5 (min)
BS 4449: 2005+A3 2016 B 500C 0.22 0.05 0.05 0.012 0.8 0.5 500 - 650 Re x 1,15 ≥1,15, <1,35 Agt % : 7.5 (min)
USA ASTM
A 615/A 615M-20		 GR 40 0.06 280 420 Bar No %
( 40.000 ) Psi ( 60.000 ) Psi (Lo=200mm) 3 11
(Lo=200mm) 4, 5, 6, 12
GR 60 0.06 420 550 (Lo=200mm) 3,4,5,6 9
( 60.000 ) Psi ( 80.000 ) Psi (Lo=200mm) 7,8 8
(Lo=200mm) 9,10,11,14 7
GR 75 0.06 520 690 (Lo=200mm) 3,4,5,6,7,8 7
( 75.000 ) Psi ( 100.000 ) Psi (Lo=200mm) 9,10,11,14 6
GR 80 0.06 550 690 (Lo=200mm) 3,4,5,6,7,8 7
( 80.000 ) Psi ( 100.000 ) Psi (Lo=200mm) 9,10,11,14 6
ASTM
A 706/A 706M-16		 GR 60
Bar No %
420 - 540 550 (Lo=200mm) 3,4,5,6 14
0.3 1.5 0.5 0.035 0.045 0.55 ( 60.000 - 78.000 ) Psi ( 80.000 ) Psi 1.25 (Lo=200mm) 7,8,9,10,11 12
(Lo=200mm) 14,18 10
GR 80
Bar No %
550 - 675 690 (Lo=200mm) 3,4,5,6 12
0.3 1.5 0.5 0.035 0.045 0.55 ( 80.000 - 98.000 ) Psi ( 100.000 ) Psi 1.25 (Lo=200mm) 7,8,9,10,11 12
(Lo=200mm) 14,18 10
BELGIUM NBN A 24-301/302 B500B 0.22 0.05 0.05 0.012 0.8 0.5 500 - 650 Re x 1,08 1.08 Agt % : 5 (min)
NETHERLAND BRL 0501
-2009		 B500B 0.22 0.05 0.05 0.012 0.8 0.5 500 - 650 Re x 1,08 1.08 Agt % : 5 (min)
FRANCE NF A35-080
-2009		 B500B 0.22 0.05 0.05 0.012 0.8 0.5 500 - 650 Re x 1,08 1.08 Agt % : 5 (min)
GERMANY DIN 488 (2009) B500B 0.22 0.05 0.05 0.012 0.6 0.5
(%Ceq ( d≤28 )) 500 - 650 Re x 1,08 1.08 Agt % : 5 (min)
0.47
(%Ceq ( d>28 ))
ITALY (D.M. 17.01.2018) B450C 0.22 0.05 0.05 0.012 0.8 0.5 450 - 562.5 540 ≥1,15, <1,35 Agt % : 7.5 (min)
ROMANIA SR-438/1-12
ST 009-2011		 PC 52 0.22 1.6 0.55 0.045 0.045 0.5 0.5 6-14mm 355 / 16-28mm 345 / 32-40mm 335 510 20 ( Lo = 5xd )
PC 60 0.27 1.6 0.55 0.045 0.045 0.5 0.5 6-12mm 420 / 14-28mm 405 / 32-40mm 395 590 16 ( Lo = 5xd )
OB 37 0.23 0.75 0.4 0.045 0.045 0.5 6-12MM 255 / 14-40MM 235 360 25 ( Lo = 5xd )
B 500C 0.22 0.05 0.05 0.012 0.8 0.5 500 - 650 Re x 1,15 ≥1,15, <1,35 16 ( Lo = 5xd )//Agt % : 7.5 (min)
BULGARIA BDS 9252:2007 and B500B 0.22 0.05 0.05 0.012 0.8 0.5 500 - 625 550 1.08 Agt % : 5 (min)
EN 10080:2005 B500C 0.22 0.05 0.05 0.012 0.8 0.5 500 - 625 575 ≥1,15, <1,35 Agt % : 7,5 (min)
HONG KONG CS2:2012 B 500B 0.22 0.05 0.05 0.012 0.8 0.5 500 - 650 Re x 1,08 1.08 Agt % : 5 (min)
B 500C 0.22 0.05 0.05 0.012 0.8 0.5 500 - 650 Re x 1,15 ≥1,15, <1,35 Agt % : 7.5 (min)
SINGAPORE SS 560-2016 B 500B 0.22 0.05 0.05 0.012 0.8 0.5 500 - 650 Re x 1,08 1.08 Agt % : 5 (min)
B 600B 0.22 0.05 0.05 0.012 0.8 0.5 600 - 780 Re x 1,08 1.08 Agt % : 5 (min)
COSTA RICA ASTM
A 615/A 615M-20		 GR 40 0.06 280 420 Bar No %
( 40.000 ) Psi ( 60.000 ) Psi (Lo=200mm) 3 11
(Lo=200mm) 4, 5, 6, 12
GR 60 0.06 420 550 (Lo=200mm) 3,4,5,6 9
( 60.000 ) Psi ( 80.000 ) Psi (Lo=200mm) 7,8 8
(Lo=200mm) 9,10,11,14 7
ASTM
A 706/A 706M-16		 GR 60
Bar No %
420 - 540 550 (Lo=200mm) 3,4,5,6 14
0.3 1.5 0.5 0.035 0.045 0.55 ( 60.000 - 78.000 ) Psi ( 80.000 ) Psi 1.25 (Lo=200mm) 7,8,9,10,11 12
(Lo=200mm) 14,18 10
BRAZIL ABNT NBR 7480:2008 CA-50 500 Re x 1.08 8 (Lo=10d) // %Agt Min. 5
ISRAEL SI 4466 PART 3 S 500W-C 0.24 1.8 0.55 0.05 0.05 0.55 500 - 650 575 ≥1,15, <1,35 11 ( Lo = 10xd )
S 400W 0.24 0.05 0.05 0.55 400 - 520 500 1.25 12 ( Lo = 10xd )
P+S = MAX. 0.080
CHILE Nch 204-2020 A440-280H Chemical analysis like ASTM A615 280 440 1.25 16
A630-420H Thermex or hot produce 420 - 545 630 1.25 8
PERU NTP 341.031/2008 Grade 280 0.06 0.05 280 420 10mm= 11 // 13,16,19mm= 12
Grade 420 0.06 0.05 420 550 13,16,19mm= 9 // 22,25mm= 8
29,32,36,43mm= 7
Grade 520 0.06 0.05 520 690 19,22,25 = 7
29,32,36,43mm= 6
CANADA CSA G30.18 GR 400W 0.3 1.6 0.5 0.035 0.045 0.55 400-525 540 1.15 10-25mm =13 > 25 = 12
GR 500W 0.3 1.6 0.5 0.035 0.045 0.55 500-625 625 1.15 10-25mm =12 > 25 = 10
COLOMBIA NTC 2289 GR 60 0.3 1.5 0.5 0.035 0.045 0.55 420 - 540 550 1.25 7,8,9,10,11 ► 12
14,18 ► 10
AUSTRALIA AS/NZS 4671- 2019 B 500N 0.22 0.05 0.05 0.012 0.8 0.44 500 - 650 Re x 1,08 1.08 Agt % : 5 (min)
B 500E 0.22 0.05 0.05 0.012 0.8 0.49 500 - 600 Re x 1,15 ≥1,15, <1,40 Agt % : 10 (min)
PARAGUAY PNA 4 007 99 AP 420 DN 0.35 1.5 0.5 0.05 0.05 0.55 420 462 1.1 10 ( Lo = 10xd )
AP 500 DN 0.35 1.5 0.5 0.05 0.05 0.55 500 550 1.1 8 ( Lo = 10xd )
JAPAN JIS
G 3112
2020		 SR 235 d < 25 d ≥ 25
0.05 0.05 235 380-520 20 22
SR 295 0.05 0.05 295 440-660 18 19
SR 785 0.45 2 1 0.04 0.04 0.8 785 924 8
SD 295 0.27 1.5 0.55 0.05 0.05 295 440-600 16 17
SD 345 0.27 1.6 0.55 0.04 0.04 0.6 345-440 490 1.25 18 19
SD 390 0.29 1.8 0.55 0.04 0.04 0.65 390-510 560 1.25 16 17
SD 490 0.32 1.8 0.55 0.04 0.04 0.7 490-625 620 1.25 12 13
SD 590A 0.45 2 1 0.04 0.04 0.8 590-679 695 1.18 10
SD 590B 0.45 2 1 0.04 0.04 0.8 590-650 738 1.25 10
SD 685A 0.5 2 2 0.035 0.035 0.85 685-785 806 1.18 10
SD 685B 0.5 2 2 0.035 0.035 0.85 685-755 857 1.25 10
SD 685R 0.4 1.5 1 0.04 0.04 0.8 685-890 806 8
SD 785R 0.45 2 1 0.04 0.04 0.8 785 924 8
