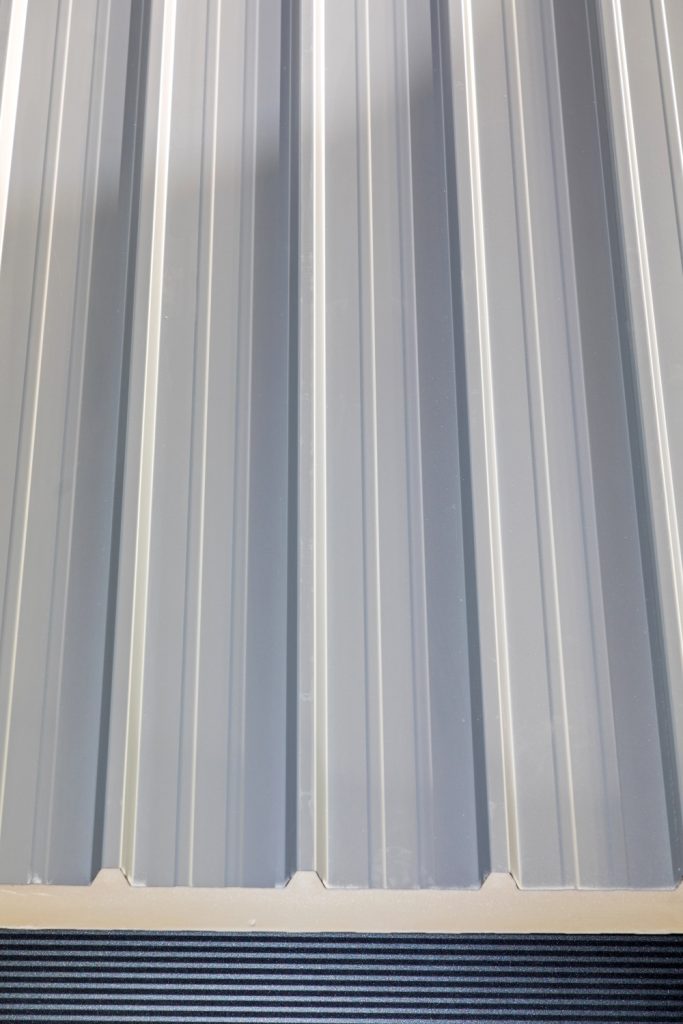

5 Ribs Membrane Roof Panel
Explore the key specifications of 5 Ribs Membrane Roof Panel for accurate, project-ready material selection.
- Insulation Thickness: 30-40-50-60-70-75-80-100-120-150-180-200 mm
- Insulation Density: PUR: 38-42 kg/m3 & PIR: 42-45 kg/m3
Overview
Sandwich roof panels offer both aesthetic and smart solutions for your buildings thanks to its energy efficiency, fire resistance, elegant look and easy installation.
Polyisocyanurate (PIR) insulated panels have higher fire resistance performance than polyurethane (PUR) insulated panels.
Specifications
| 5 Ribs Membrane Roof Panel | |
|---|---|
| Product Group | Roof Panels |
| Product Details | PVC Membrane + Metal Sheet + PUR or PIR Insulant + Metal Sheet |
| Insulation Thickness | 30-40-50-60-70-75-80-100-120-150-180-200 mm |
| Insulation Density | PUR: 38-42 kg/m3 & PIR: 42-45 kg/m3 |
| Panel Width | 100-150-200-250-300 cm |
| Panel Length | 2 - 15 meters |
| Outer Sheet Thickness | 0,3 - 0,8 mm |
| Inner Sheet Thickness | 0,3 - 0,8 mm |
| PVC Thickness | 1,2 mm |
| Colour Options | RAL (9002, 9006, 7042, 7016, 5010, 5015, 6018, 6029, 3009, 3011, 2004, 1028) |
| Thermal Conductivity | Depending on panel thickness, λ between 0,49 - 0,11 w/m2k (Acc. EN 14509) |
| Fire Performance | B-S2;D0, B-S3;D0, C-S3;D0 (Acc. EN 13501-1) |
